Product Specifications

If you require any other info on the below products don't hesitate to give us a call.

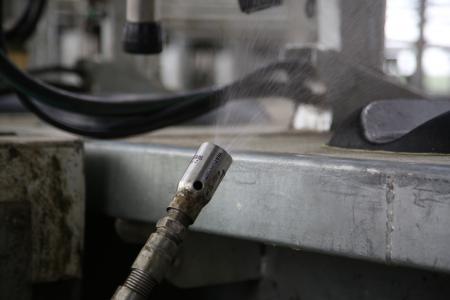

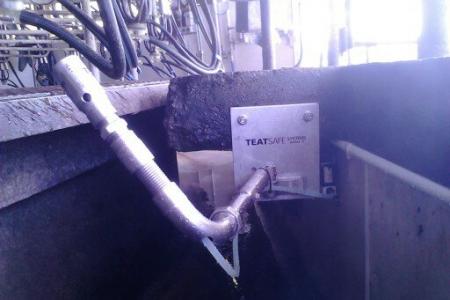

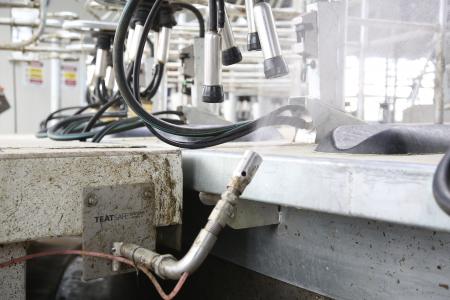

Roto Spray

Fully automatic teat sprayer unit designed to be fitted at the cups-off bridge side of the platform.

Teatsafe systems controller can also operate a second spray unit, or upgrade to BACK-OFF BLAST, this gives a blast of water or air (or both) to the cows face after teats are sprayed and has reached the back-off point.

Fully electronic unit can be set to control the amount of teat spray used for each cow, speed delay timer set to average speed of platform movement past sprayer unit.

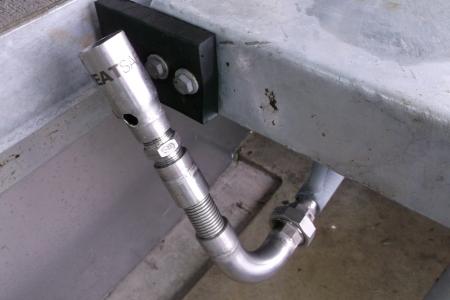

The sprayer unit is made from heavy stainless steel, designed for heavy impact and spring loaded.  Fully adjustable spray jet to ensure total teat coverage leaving a perfect drip at the end of each teat.

Infrared sensor detects the cow passing the sprayer unit (no cow-no spray). This sensor IP67 rated, shockproof and easy to adjust.

Has a bail trip switch for point of spray timing, this can be lined up with trigger points on each bail (some sheds may need to have some added), or line up with bail drop-arms to ensure cups-off spraying.  Other options for Cups-Off-Detection are available.

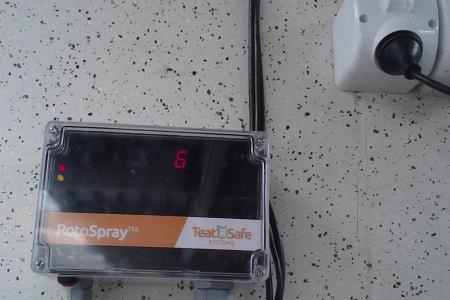

Low voltage 24 volt system. Cow/spray counter on screen (digital display), automatic fault detection, Spray and delay time fully adjustable by remote controller (supplied).

Can be used with your current hand-held pressure sprayer system.

Package includes:

  • Main control unit and remote control
  • Stainless steel sprayer unit
  • Cow sensor and 15mm mounting bracket
  • System spray trip switch

You may need pressured spray supply, either a spray pump or pressure vessel (not included in package).

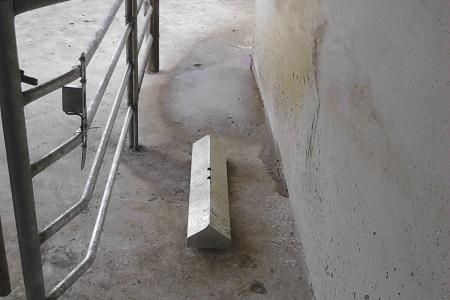

Walk Over Spray

Fully automatic teat sprayer unit designed to be fitted at the narrow section of the cowshed exit race.

The teatsafe systems controller can operate two spray units at the same time (side-by-side for faster cow exit flow). These units are suited for either Herringbone or rotary cowsheds. Simple to fit.

Fully electronic unit can be set to control the amount of teat spray used for each cow and speed delay timer to set average speed of cow movement.  The ground sprayer unit is made from heavy galve steel,  measures approx. 1000mm long by 220mm wide and has two fully adjustable spray jets to ensure total teat coverage leaving a perfect drip at the end of each teat.

Infrared sensor detects the cow passing over the sprayer unit, this sensor is fully waterproof and fitted inside strong stainless housing.

Low voltage 24 volt system. Cow/spray counter on screen (digital display), automatic fault detection, Spray and delay time fully adjustable by remote controller (supplied).

Can be used with your current hand-held pressure sprayer system.

Package includes:

Main control unit and remote control
Steel ground sprayer unit
Cow sensor and mounting bracket

You may need pressured spray supply, either a spray pump or pressure vessel (not included in package).

Extras

Cups-on-Siren

Sounds a siren when the cups are still on the cow at the spray point.  This is useful for sheds not fitted with bail arms or chains to retain the cow.  The siren notification allows the operator to stop the platform to prevent cluster and milkware damage.

Cups-off-Detection

Options for sensors depending on your shed setup. This ensures cups off spraying so if the cups are still on the cow the teatsprayer will not operate. This is a requirement for any teat-spray system.

Back-off-Blast

The Roto-Spray electronic teat sprayer has an optional output to operate a solenoid valve controlling air or water or both at the back off point, when cows can be difficult to get off the platform.  This system works on a countdown timer after the cows have been teat sprayed.
